Features:

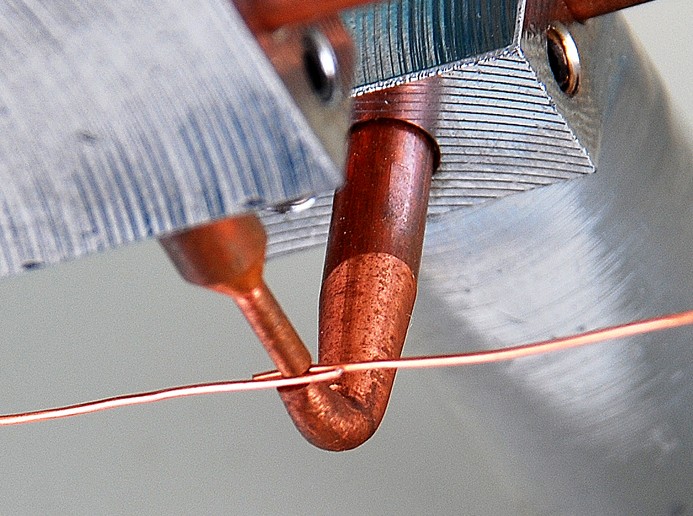

1. Function of Spot welding.

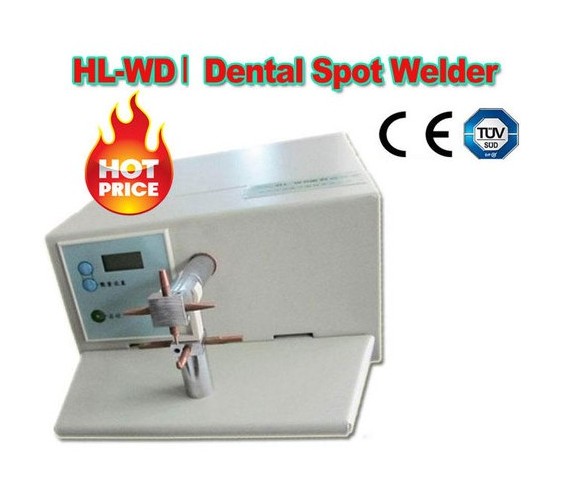

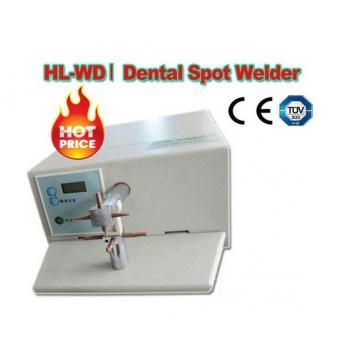

2. This HL-WD I dental spot welder is used for orthodontic materials, apply to the material of 0.2mm~1.8mm.
3. Adopt microprocessor control system, reliable quality, and high control precision.

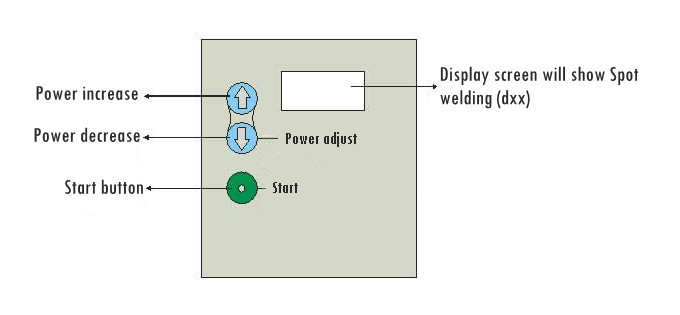

4. Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, it convenient and concise.
5. Good in safety feature; it has overheating protection system, there’s indicator and alarm function with sub-pressure, overpressure and improper operation.
6. With the welding parameters memory function, when switch on, it will automatically show the same parameters as the last set, so there’s no need to adjust parameter again at the same condition.
7. Welding electrodes can be chosen with different combination, it’s suitable for the different weldment.
Optional attributes:
1. Voltage: 220V
2. Voltage: 110V
Technical specifications:
Power Supply | 220V, 50Hz or 110V, 60Hz |
Power Maximum Current | 20A |
Transformer output power | 2000W | Transformer overheating protection | 85℃ |
Security type | Class I, type B | Output voltage | 5V |
Energy regulation | Spot welding (dxx) 1~30 | Dimension of weldment | Diameter 0.2~1.8mm stainless steel wire |
Fuse | Ф5×20mm, 20A | Operation alarm | Overheating |
Packing list:
1. Main unit x 1

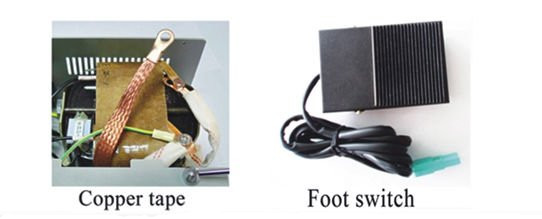

2. Copper tape x 1
3. Foot switch x 1
4. Adapter x 1
5. Operation manual x 1
