ZoneRay® HL-WD III Spot Dental Spot Welder

ZoneRay® HL-WD III Spot Dental Spot Welder

  |  Write a Reviews
$534.99

Buy More, Save More

2-4 5-9 10-max
$512.99 $490.99 $468.99
No.: G18016814   |  Brand: Dentalget
Voltage:
PlusMinus

Add to Cart

12 Month Guaranteed Warranty 12 Month Guaranteed Warranty 12 Month Guaranteed Warranty 12 Month Guaranteed Warranty
  • Item Description
  • Customer Reviews

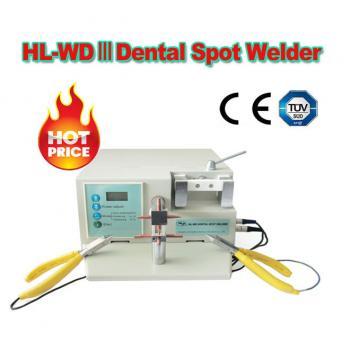

ZoneRay® HL-WD III Spot Dental Spot Welder


Features:

1.    Function of Spot welding, braze welding and heat treatment, you can also use function clamps to do treatment.
2.    This HL-WD III dental spot welder is used for orthodontic materials, apply to the material of 0.2mm~1.8mm.
3.    Adopt microprocessor control system, reliable quality, and high control precision.

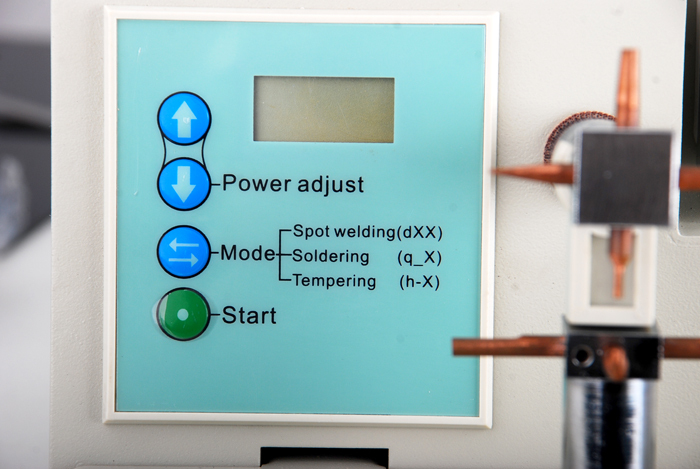

4.    Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, its convenient and concise.
5.    Good in safety feature; it has overheating protection system, there’s indicator and alarm function with sub-pressure, overpressure and improper operation.
6.    With the welding parameters memory function, when switch on, it will automatically shows the same parameters as the last set, so it’s no need to adjust parameter again next time at the same condition.

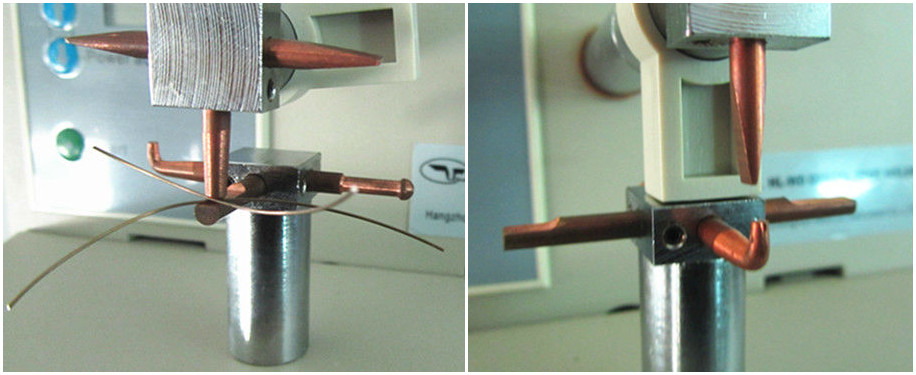

7.    Welding electrodes can be chosen with different combination, it’s suitable for the different weldment.
8.    The machine has various functions as spot welding, braze welding and heat treatment.

Optional attributes:

1.    Voltage: 220V
2.    Voltage: 110V

Technical specifications:


Power Supply 220V, 50Hz or
110V, 60Hz
Power Maximum Current 20A
Transformer output power 2000W Transformer overheating protection 85℃
Security type Class I, type B Output voltage 5V
Dimension of weldment Diameter 0.2~1.8mm stainless steel wire Energy regulation Spot welding (dxx) 1~30Braze welding (q_x) 1~9Heat treatment (h_x) 1~9
Fuse Ф5×20mm, 20A

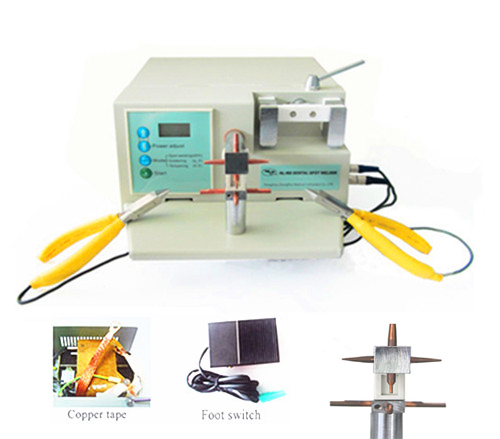

Packing list:


1.    Main unit x 1
2.    Copper tape x 1
3.    Foot switch x 1
4.    Power cord x 1
5.    Function clamps
6.    Adapter x 1
7.    Operation manual x 1

HL-WD III Spot Dental Spot Welder

HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder



HL-WD III Spot Dental Spot Welder
