Notice: The Woodpecker ultrasonic scaler is suitable for rated voltage of 220V, if your local rated voltage isn't 220V, you require a voltage transformer.
Features:
1. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
2. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
3. The cable is made from silica gel tube, soft and durable.
4. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
5. Eliminating dental calculus, bacterial plague and tea scales on the teeth quickly without hurting the gum or the enamel.
6. The adjustment range of the amplitude is much wider than before.
7. The new water control switch of the Wodpecker DTE D1 ultrasonic scaler makes the adjustment of the water more convenient.
8. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
9. Singlechip controlled, easy operation and more efficient for scaling.
10. Compatible with Satelec, you could connect your Satelec handpiece with this control box, and you could also connect this Woodpecker DTE handpiece with Satelec control box.
11. CE and FDA certificated.
Optional attributes:
1. Color blue
2. Color green
Technical specifications:
Adapter input | 220-240V~ 50/60Hz 150mA | Output primary tip vibration excursion | ≤100μm |
Output half-excursion force | <2N | Output tip vibration Frequency | 28kHz±3kHz |
Main unit input | 24V~ 1.3A | Output power | 3-20 W |
Main unit fuse | T1.6AL, 250V | Adapter fuse | T0.5AL, 250V |
Weight of main unit | 0.62 Kg | Weight of adapter | 1.2 Kg |
Water pressure | 0.01-0.5 MPa | Operating mode | Continuous operation |
Protection against electric shock | Class II, Type BF | Dimension | 203 * 138 * 94 mm |
Protection against harmful ingress of water | Ordinary equipment | Protection degree against water (used on foot switch) | IPX1 |

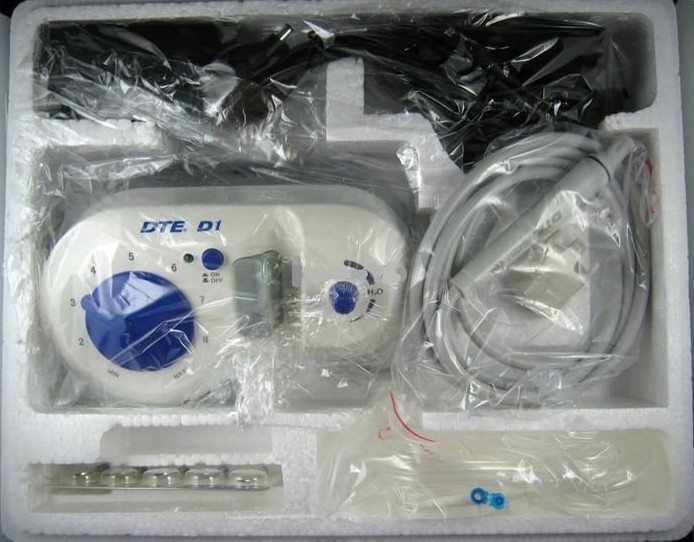

Packing list:
1. Main unit x 1
2. Handpiece x 1
3. Foot switch x 1

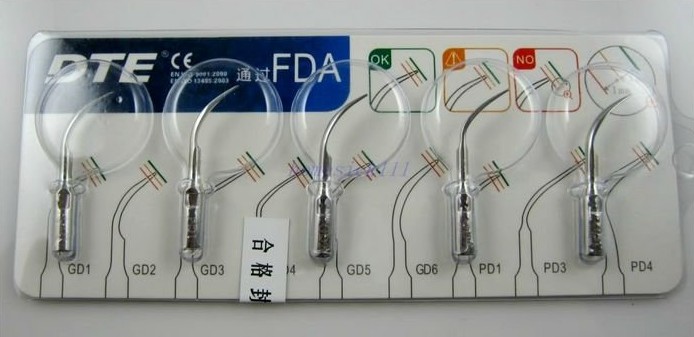

4. Tip x 5
5. Adapter x 1
6. Torque wrench x 1
7. Operation manuel x 1
