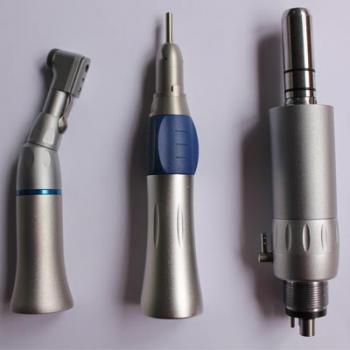

LY® Dental Low Speed Handpiece Unit
Features
Contra angle handpiece
1. Low Speed 22,000-27,000 rpm.
2. The shank of the instrument mounted therein is 2.35 mm
3. Fastening of the instruments with a turning latch
4. 135°C Autoclavable·
5. For any lab or E-type motors·
6. have two type for the client select: push button, wrench type

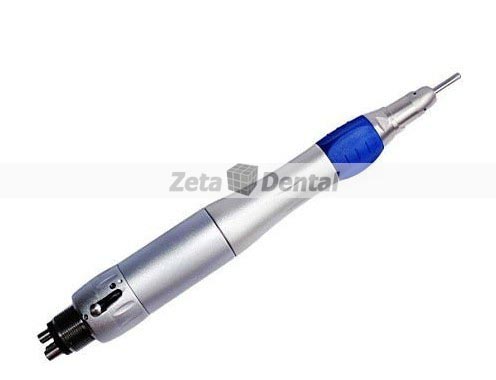

Straight handpiece
1. Working pressure: 0.3MPa (4-hole);
2. 0.25MPa (2-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
3. Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
4. Noise: ≤68dB
5. Air consumption: about 56L/min
6. Ratio: 1:1
7. Max speed of contra angle: 25000rpm/min.
Air Motor
1. Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
2. 1:1 Direct Drive
3. Midwest 4 holes
4. Max speed 20,000 min-1
CE certification
