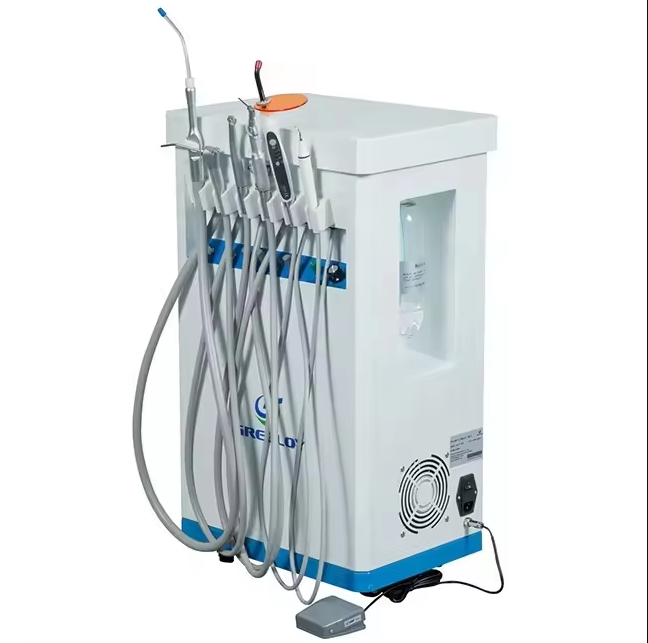

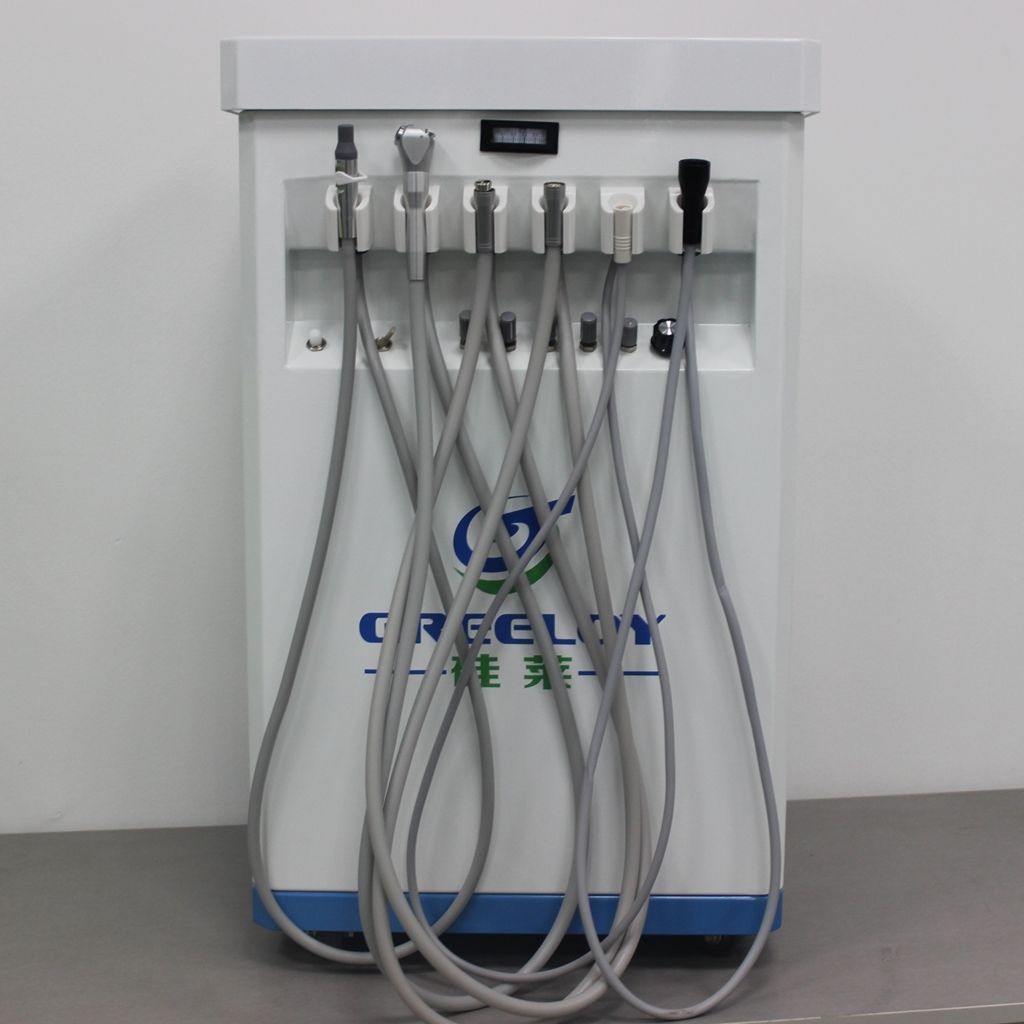

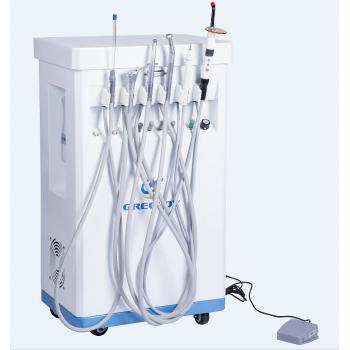

Cabinet design mobile dental unit, it is an indoor use unit, which keeps portable dental unit, dental cabinet, instrument tray and some other functions in one system. At the top of unit, instrument tray is removable design, you may remove it for cleaning or disinfection or replacement; self-contained space for storage; casters with brake, you may remove the unit freely, and lock it at any location; back-angled shape makes it ideal for use in corner room, maximizing the size of clinic; built-in oil free compressor, maintenance free, comes with stainless steel air tank. This mobile unit keeps all functions same as traditional dental chairs.
Note: This item does not include the handpieces. If you need handpieces, please contact our customer service.
Features:
1.MOBILE UNIT: mobile dental unit GU-P209 It is a new design of a mobile dental unit, which with nice appearance, and fully upgraded in working performance.
2.FASHION DESIGN: With high quality aluminum alloy material, this unit with a durable cabinet, light weight.

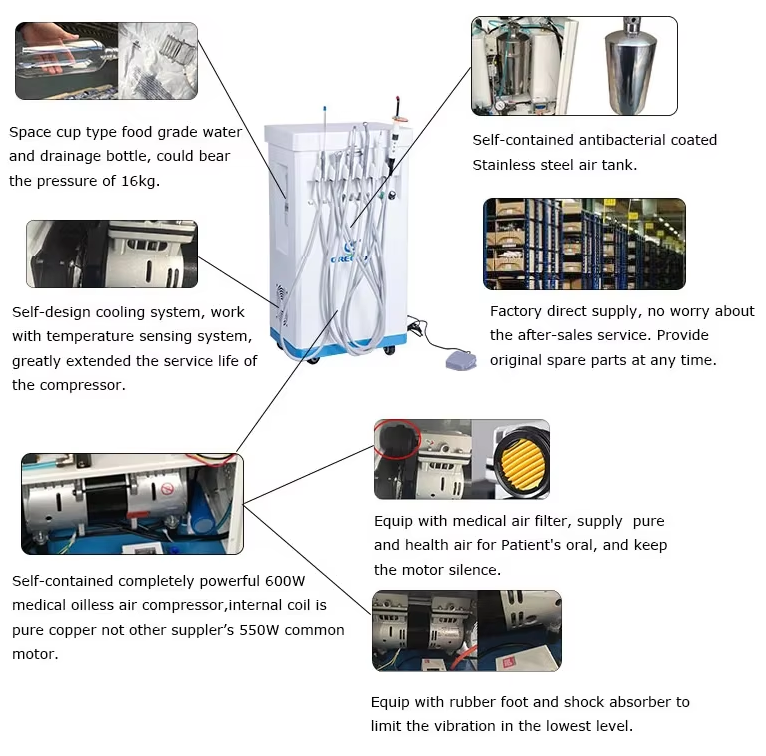

3.PERFECT STRUCTURE: Internal integration of oil-free compressor, air tank, control system for water, air and electricity, and all configurations are installed in the rugged housing.
4.COMPLETE FUNCTION: The unit consists of related operation system inside the dental treatment unit, such as air system, water system, suction and drainage.
5.SIMPLE OPERATION: Using when install the parts correctly and connect with power. And the unit controlled with foot control pad.
6.HIGH DURABILITY: High quality motor with steady performance, solid box to ensure anti-fall.
7.FREE MAINTANANCE: Oil free motor without any lubricated oil, drainage bottle is more convenient to remove and disinfect.
8.ENVIRONMENTALLY FRIENDLY: Foreign objects attached with germina would be disposed separately to avoid infection.
9.APPLICATIONS: Dental Hospital, Dental Clinics, Army and Outdoor Dental Care or Treatment Establishment.
Specifications:
Power: 600W
Volt./Hz: 110~240V 50/60Hz (right plug free to fit your country)
Maximum pressure: 6.5bar
Air flow: 118L/min@0Barr
Pressure: 0-6bar

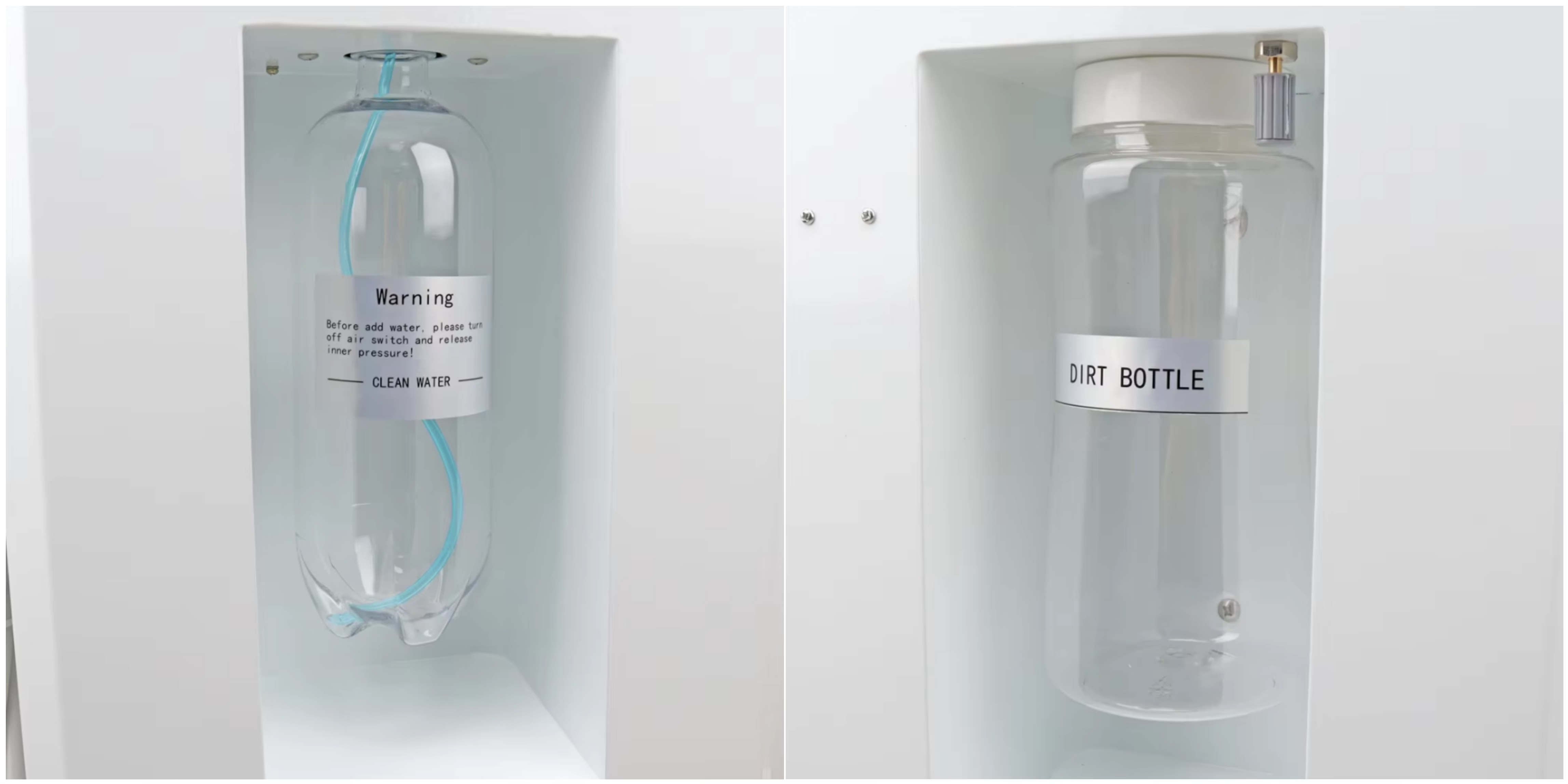

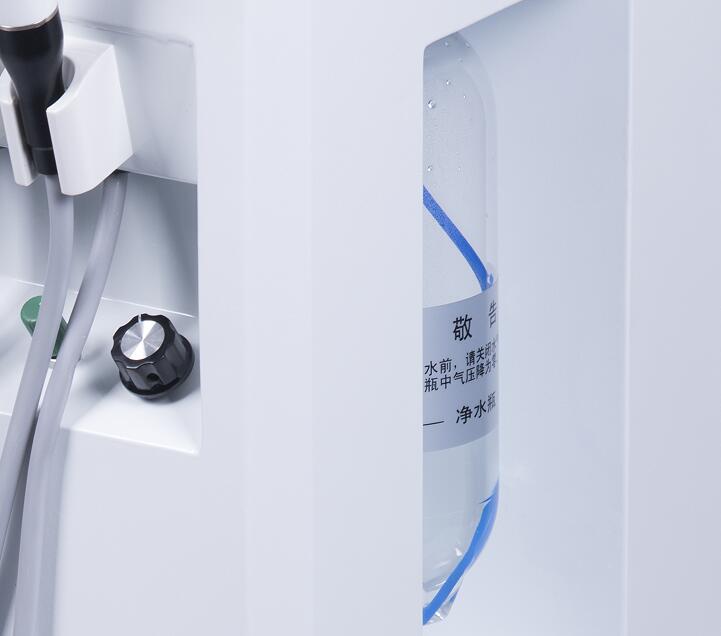

Clean water bottle: 1000ML
Drain bottle: 1000ML
Air stainless steel tank: 4000ML
G.W./N.W.: 46.5/35 KG
Dimension: 440*350*720 mm
Noise: 42dB
Standard Accessories:
Mobile dental unit with instrument tray
Silent oil free dental air compressor
Saliva ejector
3-way syringe
High and low speed handpiece tubings
LED-Curing light
Ultrasonic Scaler

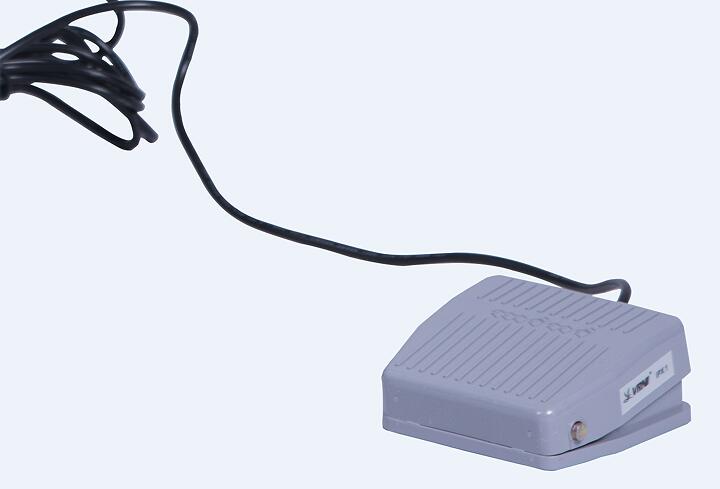

foot pedal switch
Packing List:
Self-contained bag with pull-out handle and wheels
Self-contained electric dental system
Self-contained clean water supply system(1000ml)
Self-contained drainage bottle(1000ml)
Self-contained oil free compressor(600w motor)
Optional Accessories:
High speed or low speed handpieces
Fiber optic handpiece tubing / Fiber optic handpiece
(If you need the above optional accessories, please contact our customer service)
