Digital 3/6 Channel with USB Electrocardiograph ECG-600G

Digital 3/6 Channel with USB Electrocardiograph ECG-600G

  |  Write a Reviews
$1069.99

Buy More, Save More

2-4 5-9 10-max
$1016.99 $975.99 $943.99
No.: G18167914   |  Brand: LY
PlusMinus

Add to Cart

3~12 Month Guaranteed Warranty 12 Month Guaranteed Warranty 12 Month Guaranteed Warranty 12 Month Guaranteed Warranty
  • Item Description
  • Customer Reviews

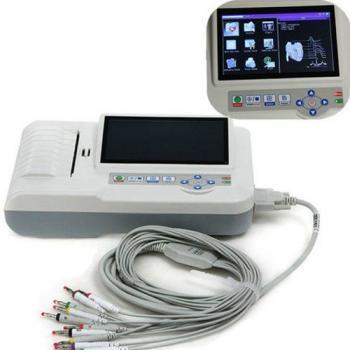

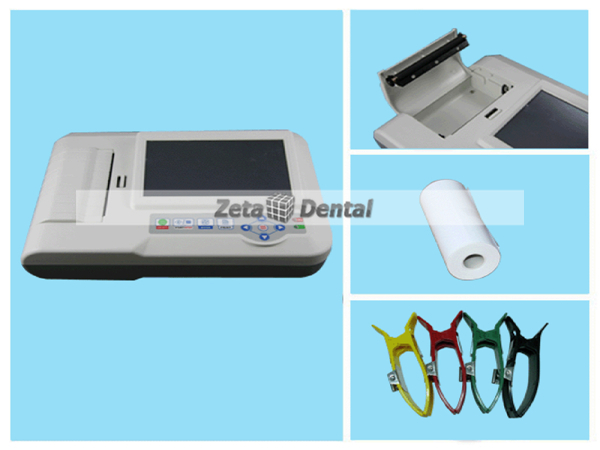

Digital 3/6 Channel with USB Electrocardiograph ECG-600G


This new ECG-600G machine – a six channel digital ECG recorder, with a superb touch-screen display showing live 12 channel ECG and the simplest of controls. All features can be accessed in an instant by simply tapping the relevant box, i.e. speed, sensitivity, filters, leads and selecting the option you require from the pop up window that appears. Moreover, it’s TFT screen allows the user to see the full ECG along with the control parameters at the same time.


Main Features

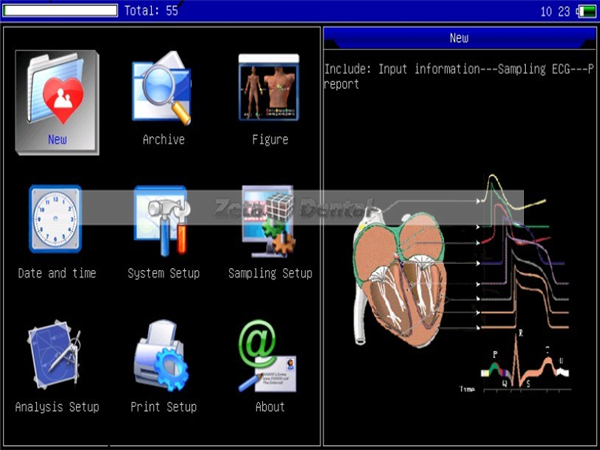

1. 800x480TFT Color LCD shows the working status and ECG waveform; Touch screen and soft keyboard control, more convenient for operation.
2. 12 Leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals.
3. Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc, to be easy for interpretation.
4. Sampling twelve leads ECG signal at the same time, analyzing 2×6+1(rhythm  lead),2×6,3×4,3×4+1(rhythm lead),4×3,4×3+1(rhythm lead),6×2,6×2+1(rhythm lead)recording mode at the same time, and reporting with multi-formats.
5. The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery. It can standby for 4 hours, print 150 pieces of  ECG waveform and print 90 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination.
6. It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for doctor review and statistic.

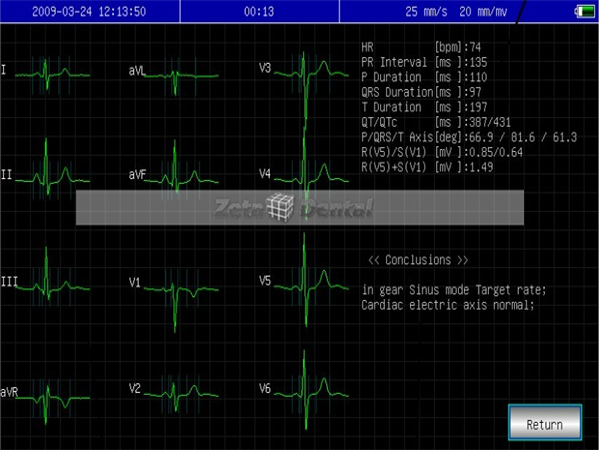

7. Under the review mode, you can see the saved ECG waveform, auto-analysis and auto-interpretation of ECG waveform parameter, auto-interpretation conclusion.
8. Support Chinese, English, Italian and Turkish operating interface, can print out Chinese or English, Italian, Turkish report.


Features of ECG-600G


1. 7" TFT, touch screen, led back light
2..Digital isolation technology and signal processing solution, digital filter
3. Patient management, name and age and id.
4. Detail analysis report.
5. Multi-language options: Germany, France, Italian, Turkey, etc
6. Built-in lithium rechargeable battery, wide thermall printing system

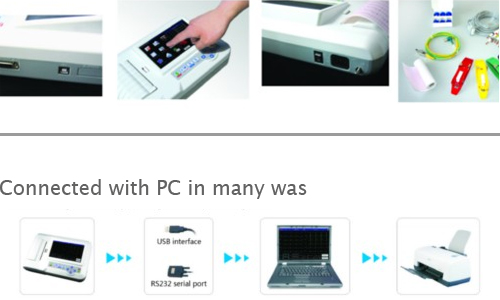

7. USB and LAN socket.
8. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
9. Auto-measurement, auto-analysis, and auto-interpretation


Technical Specifications:



Model ECG-600G Lead Standard 12 leads
Patient leak current <10uA Input impedance >=50M
Frequency response 0.05 ~ 150HZ(-3dB) Time constant >3.2S
CMRR >100dB Dimension of recording paper 80mmx20m
Paper speed 25mm/s, 50mm/s Sensitivity choice 5, 10, 20mm/mV
Measurement parameters HR, P-R interval, Duration, QRS Duration, Q-T interval, Q-Tc, P Axis,
QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Product safety type Class I, CF. Defibrillation and pacing protection
Enduring polarization voltage ± 300mv Noise level <15uVp-p
Dimension 130mm(L)×74mm(W)×25mm(H) Net weight 3KG



Main performance:


1. Safety Class: Class I, Type CF applied part. there is defibrillation circuit.
2. Power supply:  AC:100V~240V,50/60Hz
                      DC: 7.4V, 3700 mAh rechargeable lithium battery
3. Fuse Specification: 2 pcs φ5×20mm AC time lag; T1.6A/250V (Power Supply: 220V)


Print:


1. Recording way: Thermal printing system
2. Specification of recording paper: 110mm(W)×20m(L) High-speed thermal paper
3. Auto-record:25mm/s、50mm/s,error:±5%
4. Rhythm record:25mm/s、50mm/s,error:±5%
5. Manual-record:5mm/s、6.25mm/s、10mm/s、12.5mm/s、25mm/s、50mm/s、100mm/s,error:±5%

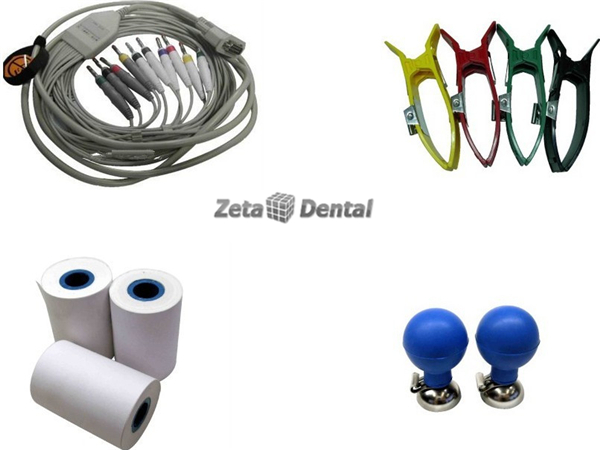

Packing List:



Product Name Quantity Product Name Quantity
ECG machine 1 Patient Cable 1
Limb Electrodes 4 Chest Electrodes 6
Power Cable 1 Grounding Cable 1
Printing Paper 1 Operation Manual 1
USB Cable 1 Software 1
